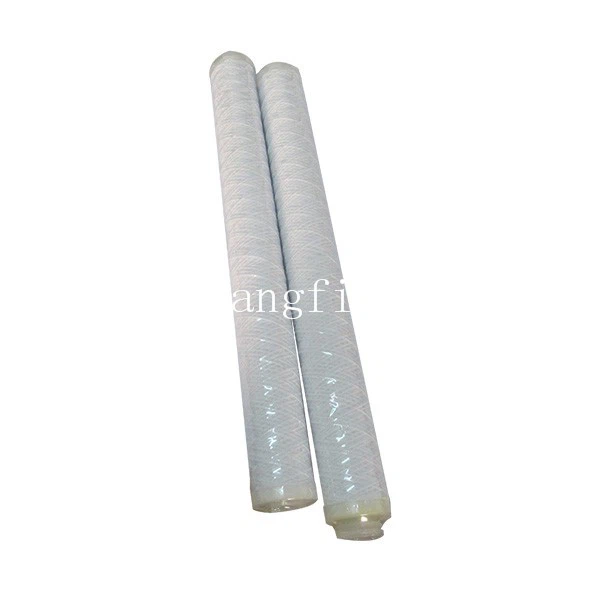

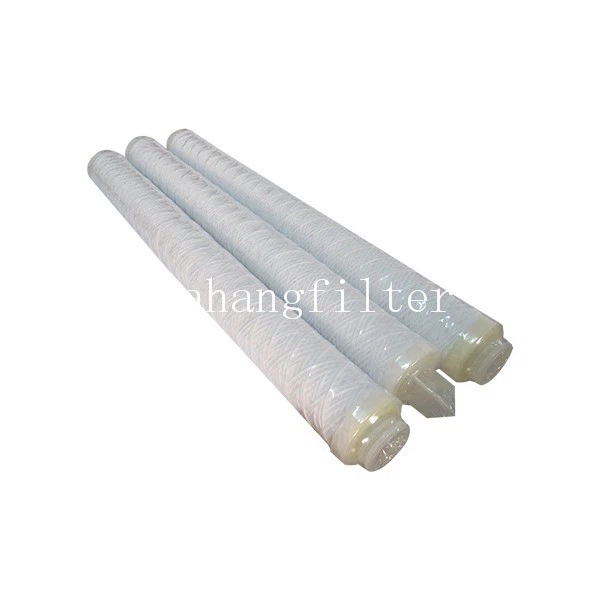

String Wound Water Filter Cartridges

string wound water filter cartridges are made of wound yarn and stainless steel central or pp core, string wound cartridges are designed as honeycomb-shap to ensure no short fibers break away. In addition, string wound cartridges provide high flow rate, good chemical resistance, excellent efficiency filtration and long service life.

1. Filtering accuracy: 1 μ m, 5 μ m, 10 μ m, 20 μ m, 30 μ m, 50 μ m, 75 μ m, 100 μ m;
2. Outer diameter of filter element: 60mm, 65mm;
3. Inner diameter of filter element: φ 28mm, φ 30mm;
4. Polypropylene wire wound filter can be used with non organic solutions such as water, acid, alkali, chemical solutions, etc., with a usage temperature of ≤ 60 ℃
5. The center rod of the degreased cotton fiber filter is made of stainless steel material and is used for organic solvents, water, oil, alkaline solutions, beverages, pharmaceuticals, etc. The operating temperature is 120 ℃.
6. Filter cartridge length: 10 ", 20", 30 ", 40"
7. Maximum withstand voltage: ≤ 0.5MPa; Maximum pressure drop: 0.2MPa.
8. Maximum working temperature: Polypropylene wire: Polypropylene skeleton ≤ 60 ℃; Stainless steel skeleton ≤ 80 ℃. Defatted cotton thread: stainless steel frame ≤ 120 ℃.

Cotton wound cartridges have multiple filtration precision

Without odor, foaming, adhesives and no fine fibre drops out

Stable structure, high flow rates and low differential pressures

Wide chemical compatibility for oil, water, acids and alkalis etc.

Withstand high temperature and consistence of good performance

Cotton wound filters own various of cores and end caps, fit for housings

1. Blockage problem: The wire wound filter element is easily clogged by impurities during use, resulting in a decrease in filtration efficiency. After blockage, the filter element cannot be cleaned and needs to be replaced with a new one.
2. Temperature resistance limit: The temperature resistance of the wire wound filter element is limited. Generally, the temperature resistance of the polypropylene material filter element cannot exceed 70 ° C, and exceeding this temperature may cause damage to the filter element.
3. Cleaning difficulty: When filtering certain special liquids (such as acidic and alkaline liquids, inks, drugs, chemical raw materials, etc.), the wire wound filter element may adhere to the filter element, making it difficult to clean, and even unable to be cleaned with water. Only corresponding liquids or solvents can be used, which will increase costs and efficiency issues

1. Regular inspection: visually inspect the output size of the filtration equipment. When the output flow is slow, the filter element should be removed for cleaning.
2. Cleaning method: After removing the filter element, rinse it with high-pressure water from the inside until the water is clear. If the surface of the filter element is particularly dirty, it can be soaked in a 10% hydrochloric acid or 30% dilute sulfuric acid solution for 3-4 hours, then washed with clean water and dried

Our products are exported to over 100 countries and regions, and their quality can meet or exceed OEM standards. Huahang Filter welcomes customers from all countries to visit our factory further.
