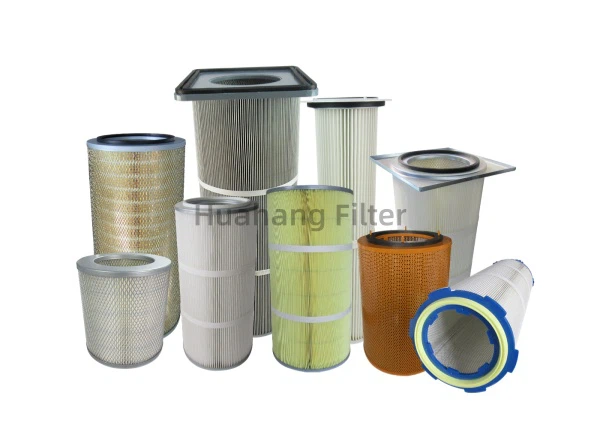

Dust Collector Filter



A dust collector filter cartridge is a pleated cylindrical filter element used in industrial dust collection systems. It captures fine dust particles from airflow and protects equipment, workers, and production environments.

Compared with traditional filter bags, cartridge filters offer:

• Higher filtration efficiency
• Compact design
• Easy installation and replacement
• Longer service life



For special dust types, harsh environments, or equipment-specific designs, we offer custom dust collector filter cartridges.

Custom Options Include:

• Outer diameter / inner diameter / length
• End cap styles (open/open, open/closed, flange, etc.)
• Filter media selection
• Special coatings and treatments

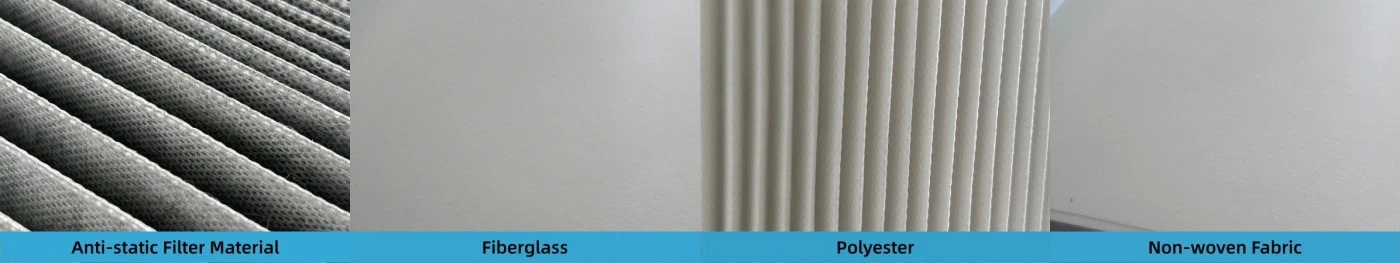

Available Media & Treatments

• Polyester
• Cellulose
• PTFE membrane for ultra-fine dust
• Anti-static for explosive dust environments
• Flame-retardant media
• High-temperature resistant materials

Material	Features	Max operating temperature	Filtration efficiency	Washable	Abrasion resistance	Chemical tolerance	Special characteristics
Cellulose	High breathability, low cost	65℃	M	None	Good	Fair	Applications with dry, coarse particulate.
Flame retardant paper	High breathability, Flame retardant	65℃	M	None	Good	Fair	Metal grinding, carbon dust, graphite dust
Polyester	Higher filtration efficiency Low running resistance wear-resistant Lower cost	150℃	F	1-2 times	Good	Good	Metal cutting, grinding, forming
Polyester with PTFE	High efficiency, Corrosion resistance, Wear resistance,	150℃	F	Several times	Excellent	Excellent	Chemical and industrial processing when product contamination must be minimized. Excellent performance on moist, hygroscopic, or agglomerative dust

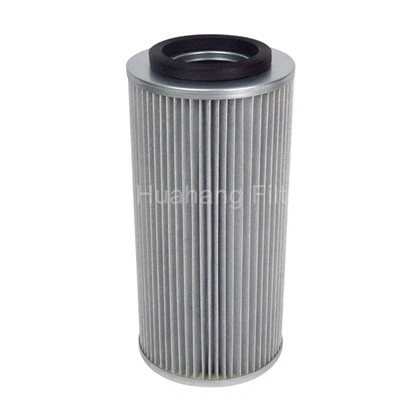

Anti-static	High filtration efficiency, Not easy to accumulate dust, No sparks caused by static electricity will occur	150℃	F	Several times	Excellent	Excellent	Applications where electrostatic charges can be dangerous and with higher temperatures up to 135° C



📌 Simply send us your drawing, sample, or part number — we will provide a fast OEM solution.





Our standard dust collector cartridges are manufactured to fit most common dust collection systems, offering cost-effective solutions with reliable performance.

Product Features:

Wide Compatibility – Compatible with leading brand dust collection systems

Multi-layer Filtration Media – Gradient density design enhances particle capture capabilities

Durable Construction – Abrasion-resistant end caps and stable sealing structure

Multiple Efficiency Levels – From primary filtration to HEPA level

Standard Sizes – Easy replacement and inventory management





Below are standard size of the dust collector filter cartridge.



Model O.D I.D Length Filtration surface(m2) 3266 Φ324mm Φ213mm 660mm 9.4m2 3566 Φ324mm Φ241mm 660mm 9.4m2 3275 Φ324mm Φ213mm 750mm 10.7m2 3288 Φ324mm Φ213mm 880mm 12.5m2 3290 Φ324mm Φ213mm 915mm 13.0m2

Send your dust collector model or filter dimensions to get started.





• Woodworking shops and furniture manufacturing
• Metal grinding and polishing
• Pharmaceutical manufacturing facilities
• General manufacturing dust management

HUAHANG provides you durable dust collector of high performance, who is one of the best dust collector manufacturers. We can offer you different filters suitable for specific purposes. Should you have any questions, please call us.
