Customized Air Filter Cartridge 650x315
Send Inquiry
Product Details ofCustomized Air Filter Cartridge 650x315
Products Description
Air filters effectively remove dust, dirt, smoke, aerosols, odors, viruses, molds, bacteria, toxic gases, and other particles and pollutants that could exist in ambient air. These pollutants cause and aggravate respiratory illnesses, skin disorders, allergies, and other illnesses.
specification
| Type | Custom Air Filter Cartridge |
| OD | 650 mm |
| Length | 315 mm |
| End Cover | Carbon steel |
| Filter material | Paper/Polyester fabric |
| Working temperature | -20~+100℃ |
| Origin | Henan,China |
| Package | Neutral carton package |

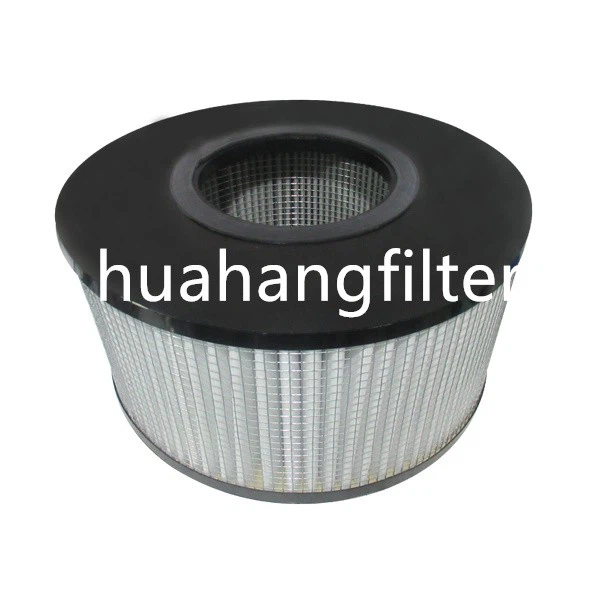

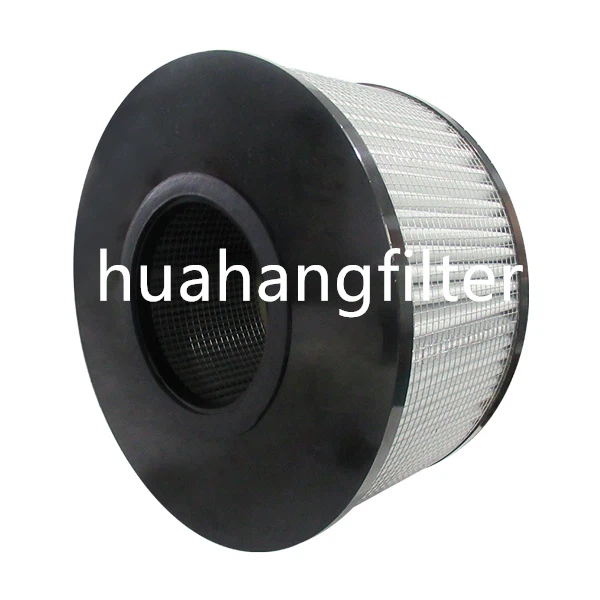

detailed images
The following precautions should be taken when using composite material air filters
Installation Precautions
- Sealing: Ensure a tight seal between the filter and the engine intake manifold during installation to prevent air leakage. Rubber washers should be installed at both ends of the filter element, and the outer wing nuts should not be overtightened.
- Direction:Do not open the packaging bag before installation. Install according to the label instructions, ensuring the arrow on the filter element points in the same direction as the airflow.
Maintenance
- Cleaning Method: Paper filters should not be cleaned with oil. Use compressed air to backflush or a soft brush to remove dust. The dust collection area of the coarse filter should be cleaned regularly.
- Replacement Cycle: Adjust according to the usage environment: Replace every 15,000-20,000 km in urban areas; every 10,000-15,000 km in rural areas; shorten to 5,000-8,000 km in harsh environments.
Special Scenario Handling
Seasonal Use:
- Spring: Check and replace the filter element promptly to prevent pollen and catkins from clogging it.
- Summer: Prioritize antibacterial cabin air filters to prevent bacterial growth.
- Winter: Ensure smooth air intake to prevent engine starting difficulties due to low temperatures.
Daily Use
- Moisture and Fire Prevention: Avoid getting the filter element wet from rain or exposing it to oil or fire.
- Long-Term Storage: When not in use, run the compressor 1-2 times per month to prevent lubricating oil from solidifying and causing the filter to seize up.
