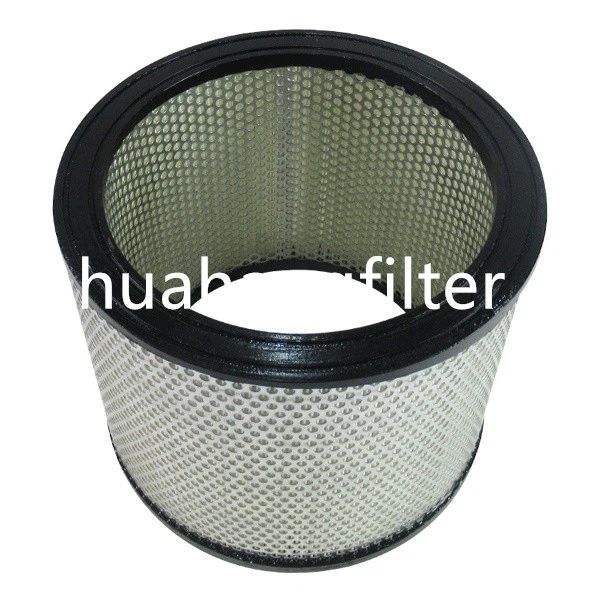

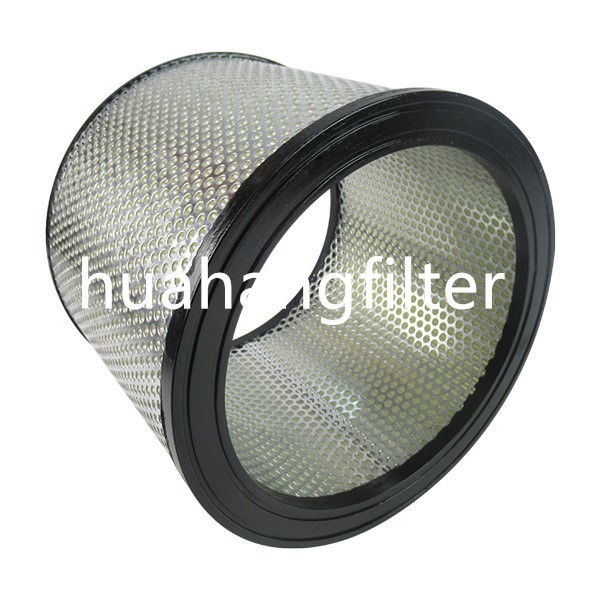

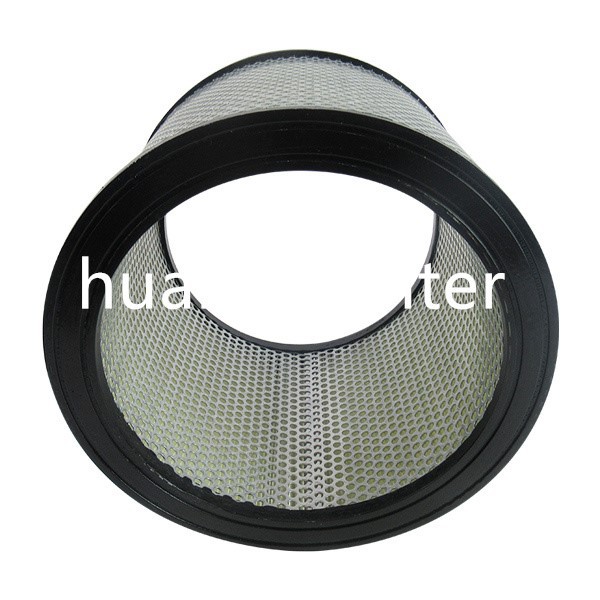

Pleated Paper Air Filters Element 300x240

End retainers are Plastisol Molds Outer retainer and Inner retainer is Galvanized Expanded Metal Media is Paper Clean Element Pressure Drop is 1.6″ w.c. at 100% of rated flow Maximum Operating Temperature is 200˚F (93˚C) Efficiency is 97% at 1 Micron and 99.5% at 2 microns Used on Universal Silencer Models: CCS-2-1/2, CCS-3, CCS-3, CCS-3-1/2, CCS-4, CCS-5 CCF-2-1/2, CCF-3, CCF-3, CCF-3-1/2, CCF-4, CCF-5 CS-2-1/2, CS-3, CS-3, CS-3-1/2, CS-4, CS-5 CF-2-1/2, CF-3, CF-3, CF-3-1/2, CF-4, CF-5

Send Inquiry

Chat Now

Description

End retainers are Plastisol Molds
Outer retainer and Inner retainer is Galvanized Expanded Metal
Media is Paper
Clean Element Pressure Drop is 1.6″ w.c. at 100% of rated flow
Maximum Operating Temperature is 200˚F (93˚C)
Efficiency is 97% at 1 Micron and 99.5% at 2 microns
Used on Universal Silencer Models:
CCS-2-1/2, CCS-3, CCS-3, CCS-3-1/2, CCS-4, CCS-5
CCF-2-1/2, CCF-3, CCF-3, CCF-3-1/2, CCF-4, CCF-5
CS-2-1/2, CS-3, CS-3, CS-3-1/2, CS-4, CS-5
CF-2-1/2, CF-3, CF-3, CF-3-1/2, CF-4, CF-5

Specifications

Type	Pleated Dust Collect Filter Cartridge
OD	300 mm
Length	240 mm
Filter material	Paper
Working temperature	-20~+80℃
Origin	Henan,China
Package	Neutral carton package
