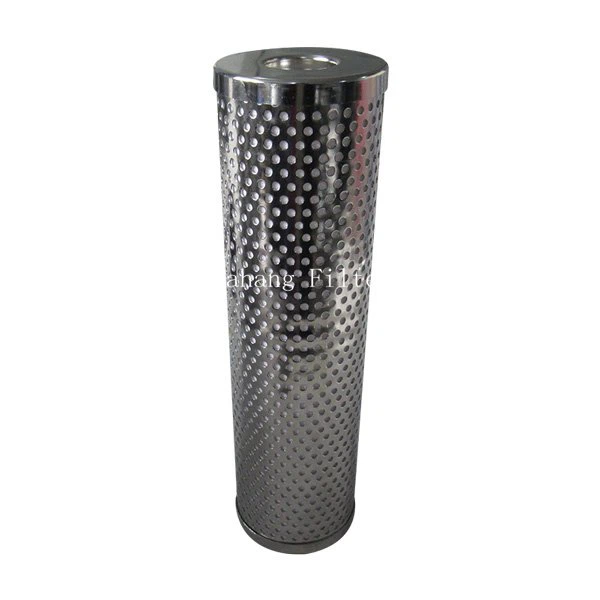

Natural Gas Coalescing Filter Element
Natural Gas Coalescing Filter Element
End cover: SS304
Outer frame: SS304
Inner frame: PP
Filter layer: assembly
Gasket: Buna-N
The coalescing filter element is processed by a variety of composite materials through a special process. It has hydrophilic characteristics.
It can not only filter out the mechanical impurities in the medium, but also separate the emulsified water from the medium through coalescence and coalesce into larger water droplets to facilitate further purification of the medium.
Product Name | Customized natural gas coalescing filter element |
Filter medium | glass fiber |
Support layer | Carbon steel |
Filter cage | Carbon steel |
Pore size | 0.1, 0.2, 0.45, 0.65, 1, 3, 5 (um) |
Length | 4", 5", 10", 20". 30", 40" |
Sealing material | Silastic, NBR, EPDM, Viton |
Airtight method: | thermal bonding technique |
Effective filtration area | 0.4~0.7m²/10" |
Diameter | 69.0mm |
Max. operating temperature | 90°C,(ΔP≤0.1Mpa) |
Max. positive pressure | 0.42Mpa(25°C) |
Max. back pressure | 0.28Mpa(25°C) |
PH value | 1--13 |
Sterilizing temperature | 121°C 30min |
Application
•Gas treatment
Amine and glycol
• Natural gas production and collection
Amine, glycol, produced water, completion fluid
•General Industry
Before reverse osmosis, inject the well, wash the bottle, water, solvent,
Acid, alkali, alcohol
• industrial
Water, solvent, acid, D.I. ,alcohol
• Food and beverage
Water, seasonings, beer, wine, vinegar
Packing & Delivery
Company Profile
Order Tips
If you are not sure exactly what filter you need, please inform its exact working environment and usage. We will help you choose some suitable filters.
