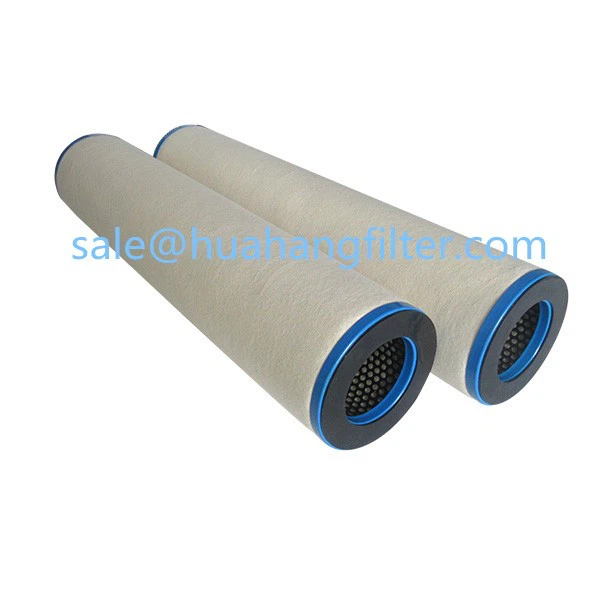

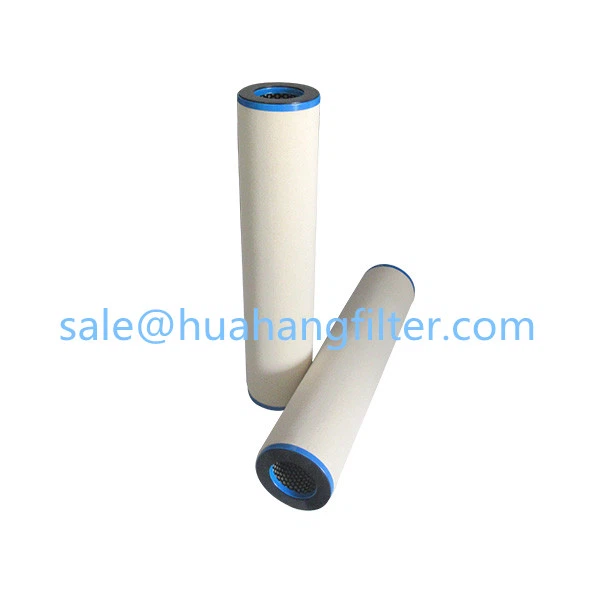

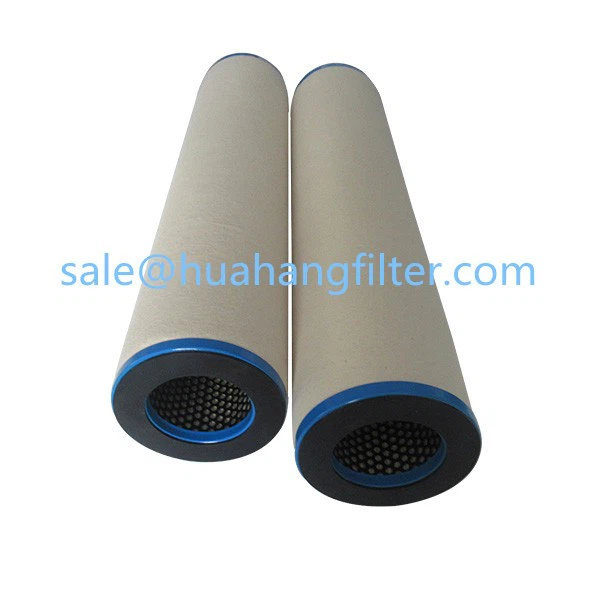

Customized Fiberglass Coalescing Filter 150x700
This filter is made with high-quality fiberglass material, ensuring its durability and long-lasting performance. Its unique design allows for efficient separation of liquids and solids, making it ideal for various applications ranging from oil refining to chemical processing.
Specifications:
| Product | Customize Coalescing Filter Element |
| Type | Cartridge |
| Media | Fiberglass |
| End caps | Galvanized |
| Out Diameter | 150mm |
| Length | 700mm |
| Max Temperature | 80℃ |
Advantages:
high density gradient, coalescence and fog droplet in gas, efficient filtration precision is high. Stable structure, there is no medium of fibers, won't cause pollution to environment, downstream products.
All items marked Replacement or Equivalent are not affiliated with the original equipment manufacturer, part numbers are to reference
More information about fuel gas coalescing filter please contact: info@huahangfilter.com
application：
Effective separation of oil, water and other liquid Aerosols from compressed air and gas lines
High efficiency removal of
Dispersed liquids, .3 & up, 99% minimum efficiency
Solid particles, .3 & up, 99% minimum efficiency
Use as a pre-filter to an air dryer, increasing system efficiency and equipment service life
Gas pipeline applications; to protect equipment from liquid and solid contaminants
ELEMENT DESIGN AND CONSTRUCTION
The AGS Series of coalescing filters offers the use of a unique high efficiency media. The element is constructed of multiple layer pleated fiberglass which is supported on a carbon steel core. The elements are available with stainless steel internals for more corrosive applications. The drainage of coalesced liquids and protection from re-entrainment is provided by a polyester foam outer wrap. The pleated design fiberglass element has extended surface area that leads to high dirt loading and log efficient service life.
ELEMENT MATERIALS
The pleated radial fin fiberglass element offers excellent chemical compatibility. The end caps are plated carbons steel with an 0-ring seal. The standard cartridge can be used in service up to 200° F. Optional materials permit temperatures to 400° F.
