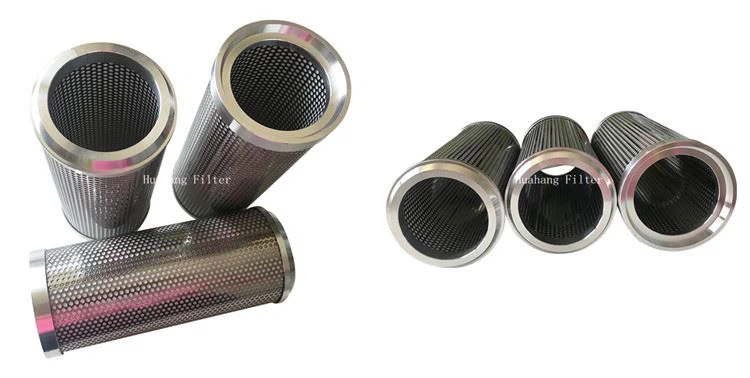

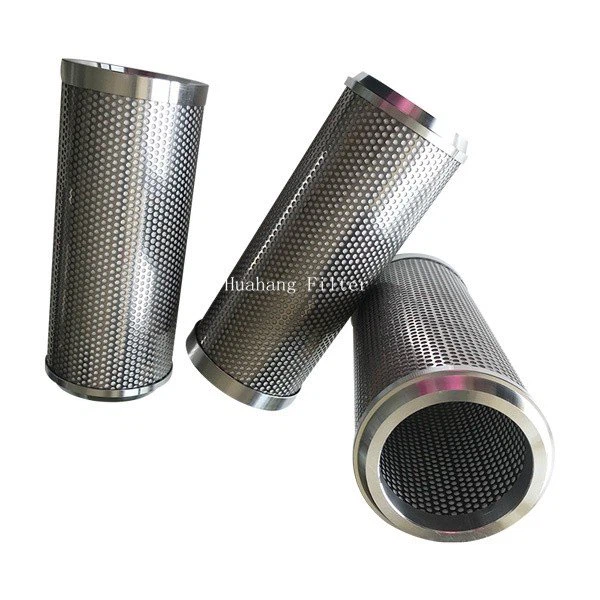

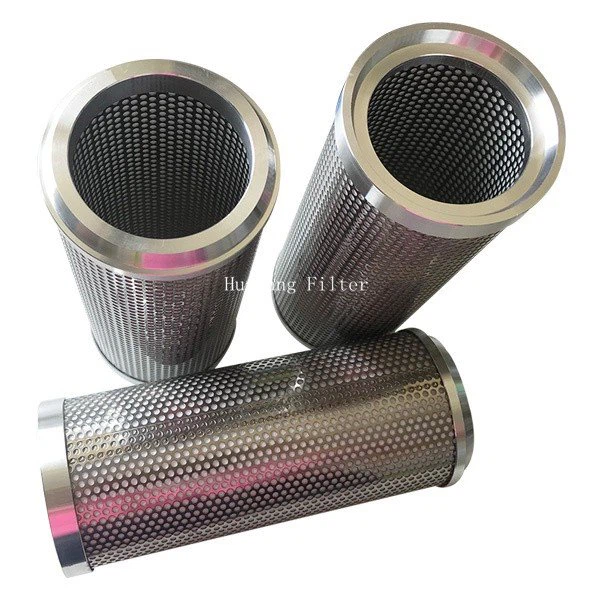

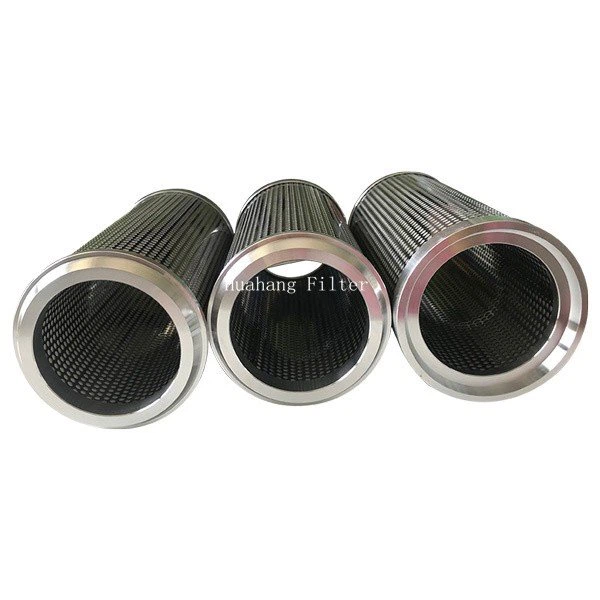

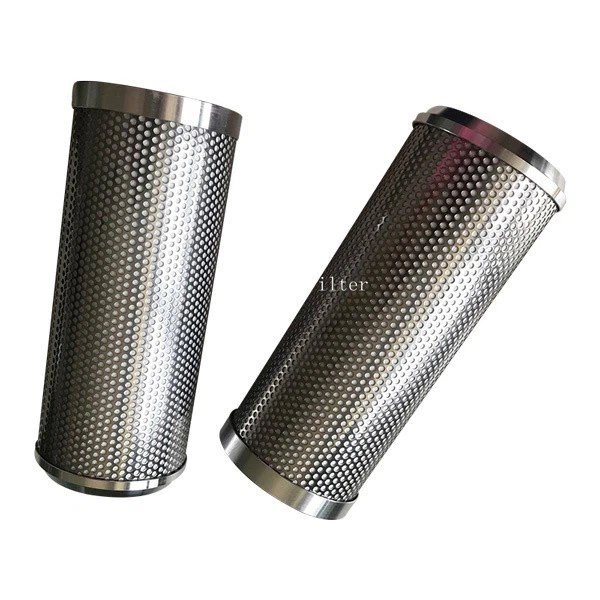

608620090 Silencer Element

This series of silencer element is developed based on the principle of anti-, spray, and anti-composite noise elimination. It has the advantages of large noise reduction, small size, light weight, convenient installation and no maintenance.

1. Our factory has a very internal quality inspection system for each process. QC operators check the semi-finished products in each production process according to QC requirements to ensure that the parts are qualified and enter the next process.

2. The finished parts are tested in the laboratory according to OEM standards and national standards, and then a batch can be put into storage.

3. For any quality problems, we will provide corrective measures to ensure that the same quality problems do not occur in the first time.

4. The quality management system passed ISO9001-2015 certification

Q1: What exactly is a silencer filter? How does it differ from a regular air filter?

A1: A silencer filter is a component that integrates both noise reduction and filtration functions. Its core difference from a regular air filter lies in:

• Regular air filter: Its main function is to intercept dust and purify the intake air.
• Silencer filter: In addition to basic filtration, it has a special internal noise-reducing structure (such as porous materials, meandering channels, expansion chambers, etc.) to absorb and weaken the high-frequency airflow noise generated during gas emission. It is mainly used at the exhaust end.

Q2: What is its noise reduction principle?

A2: Its principle is mainly based on a combination of one or more of the following mechanisms:

• Absorption type: The porous material inside the filter (such as sintered metal, plastic fibers) allows sound waves to enter and rub against the material, converting sound energy into heat energy.
• Resistant type (expansion chamber/resonance type): Through a sudden change in the cross-section of the internal channel, sound waves are reflected and interfered with during propagation, thereby canceling out some of the sound energy.
• Resistive type: It uses the resistance generated when airflow passes through small gaps to reduce the airflow speed, thereby reducing the noise generated by high-speed airflow.

Q3: In which types of equipment are muffler filters typically used?

A3: They are widely used in any application requiring exhaust noise control:

• Pneumatic systems: Exhaust ports of cylinders, solenoid valves, and vacuum generators.
• Vacuum pumps: Exhaust noise reduction for rotary vane vacuum pumps and liquid ring vacuum pumps.
• Industrial equipment: Exhaust circuits of packaging machines, injection molding machines, and testing equipment.
• Engine breathers: Crankcase ventilation systems, reducing noise while filtering oil and gas.

Quote for details
